Part number |
Package |
Trigger current(mA) |
On-state RMS current(A) |
Load voltage (Vac) |
Non zero-cross/Zero-cross |
Note: test condistion according to the datasheet |
Dielectric strength (Vrms) @loff≤ 0.3mA |
Operating temperature(°C) |
Remark |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Output on-state voltage drop (V) |
Zero-cross voltage(V) |
Surge current(A) |
Ton(ms) |
Toff(ms) | |||||||||
型号
| 封装形式
| 触发电流(mA)
| 额定电流(A)
| 负载电压(Vac)
| 调相型/过零型
| 导通电压降(V)
| 过零电压(V)
| 浪涌电流(A)
| 导通时间(ms)
| 关断时间(ms)
| 介质耐压(Vrms)
| 工作温度(°C)
| 备注
|

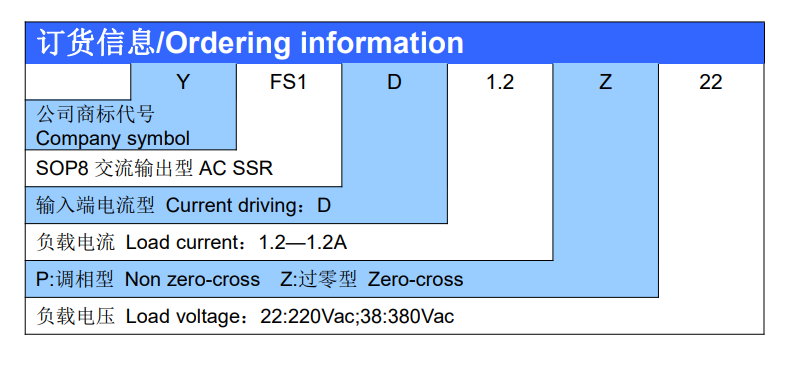

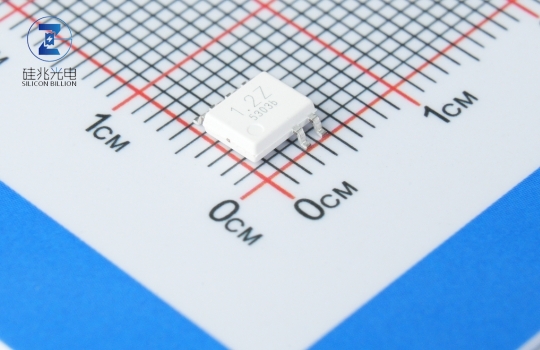

YFS1/D1.2Z22 规格书下载 |
SOP8
| 8
| 1.2
| 220
| Zero-cross
| 2
| 20
| 12
| 1+1/2cycle
| 1+1/2cycle
| 3000
| -30 ~ 85
| N.O.
|
